Product Details
Filters
Filter wheel fixed in light path with blue, green & yellow filters.
Illuminator
The Epi - illuminator has 5W LED lamp adjustable brightness.
Objectives
M Long Working Distance Achromatic 5x (WD 15.5mm), 10x (WD 8.7mm), 20x (WD 8.0 mm) and 50x (WD SL 5.
Eye pieces
(Anti Fungus) Wide Field eye piece 10x (paired) F.O. V 20mm.

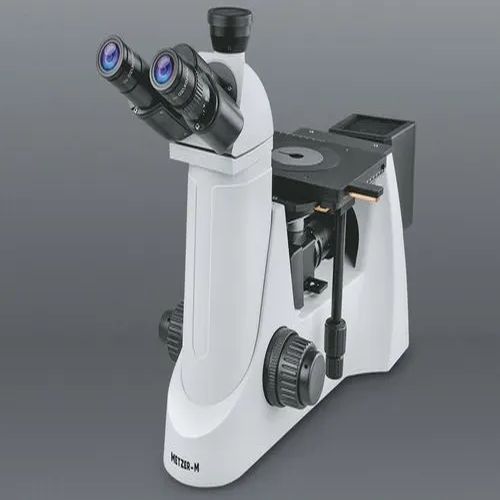

Model Name/Number
Vision Plus -5000 ITM Max
Observation -
- SeidentopfTrinocular Observation head inclined 30??, Vertical phototube for micro photography light split (80:20) Diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 52mm to 75mm.
Mechanical Body
- Co–axial Focusing System with large knobs.
- Pre Focusing Lever & Tension Adjustment Ring.
- Quadruple nosepiece on ball bearing.
- The mechanical stage has low positioned co-axial controls on ball bearing guide ways.
