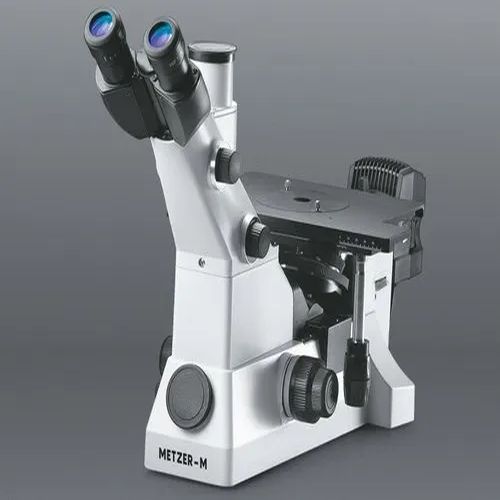

Iza Met III - Inverted Binocular Metallurgical Microscope

Link Copied
3.50 Lac per Piece
Business Type Supplier, Trader, Distributor
Condition New
Country of Origin India
Eyepieces (Anti Fungus) Wide Field eye piece 10x (paired) F.O. V 22mm.
Click to view more

Product Details

Trinocular Observation Head
Siedentopf observation head inclined at 45°.
Mechanical Body
Co-axial Focusing System with Large Knobs, Pre-focusing Lever & Tension Adjustment Ring.
Illuminator
The Epi illuminator has 12V-50W halogen lamp with variable brightness control.
Model Name/number
Iza -met Iii
Optional Accessories
DIC (Differential Interference Contrast). DIC filter for 5X, 10X, 20X, 50X 100X.
Objectives
Objectives (Infinity corrected) Dark/Bright Field BD Long Working Distance Plan 5X, 10X, 20X, 50X, 1
Filters
Filter wheel fixed in light path with blue, green & yellow filters.
Polarizing Outfit
Analyzer rotatable at 360 deg. Polarizer &Analyzer can be slide in/out of the optical path.

Observation -

  • SeidentopfTrinocular Observation head inclined 45??, Vertical phototube for micro photography light split (80:20) Diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 52mm to 75mm.


Mechanical Body

  • Co–axial Focusing System with large knobs.
  • Pre Focusing Lever & Tension Adjustment Ring.
  • Quadruple nosepiece on ball bearing.
  • Mechanical stage Stage size with control box and its travel distance 40X40mm.
  • The mechanical stage has low positioned co-axial controls on ball bearing guide ways.
