Metallurgical Testing Equipment

Product Details :-
Material Preparation and Test Method Details The analysis method requires sample preparation with specifc grinders and grinding pads, followed by testing with the Z-200 C+. We utilize a handheld grinder operating > 5,000 rpm, with minimum 50 grit Al2 O3 or ZrO ceramic grind pads. The same grinding recommendations as spark OES are employed. For L-grade analysis, change the grind pad more frequently, say every 5 materials or so. If you grind a high carbon material, it is best to change the grind pad before moving to a low carbon material, due to cross contamination.
 Details of the Test Method Defnitions: A “test” is a single test of the material with the Z LIBS analyzer. For each test, the laser rasters to six different locations on the alloy material and averages the result from each of the six locations. This requires 3 seconds. The purpose of the six tests is to average out any local inhomogeneities in the alloy composition because the laser beam is less than 100 um in diameter. Rastering is typical with LIBS, but not with spark OES because the OES burn is much larger than the laser burn. A “result” is a fnal answer that consists of typically two or three LIBS tests which are automatically averaged by the analyzer software. Each test takes 3 seconds, so a result is typically 9 - 15 seconds depending on the number of tests averaged.
As mentioned earlier, operators may run the Z-200 C+ in a manual mode or a selection of automated modes. Manual operation performs a pre-fush, pre-burn and then 3 consecutive 3s tests. The number of tests is user settable. Each test is shown on the display, along with the running average. The user can tap on one or more tests to remove them from the averaging. The user may also pull the trigger to add additional tests. Experienced OES operators with good sample prep typically run 2 or 3 tests after the pre-burn. Two tests are used to confrm the frst result, or 3 tests to make an average. Less experienced operators are encouraged to star out with the automated test rejection feature. There are two automated testing options: High/low rejection and rejection based on variation at each of the six raster points. High/low rejection requires fve tests. It rejects the highest and lowest tests and produces an averaged of the remaining three tests. Note: SciAps will incorporate additional rejection methods based on user input. Precision-based rejection is even more suited for inexperienced operators. It’s a useful approach to identify insufcient sample prep or contaminated grind pads. As noted during a 3 second test, the laser collects spectral data from six different locations. For precision-based rejection the Z rasters the laser to six discrete positions during a test. The FPGA engine and Android processor analyzes the spectral data and compares carbon intensity ratios from the six locations. The Z rejects a test if the standard deviation in carbon intensity ratio from the six locations exceeds a predetermined threshold. The software prompts the user for additional tests until the required 3 good tests are achieved. For less experienced operators, especially regarding the rigorous sample preparation required for carbon testing, the automated rejection setting is a great option. Better sample prep means less tests rejected.

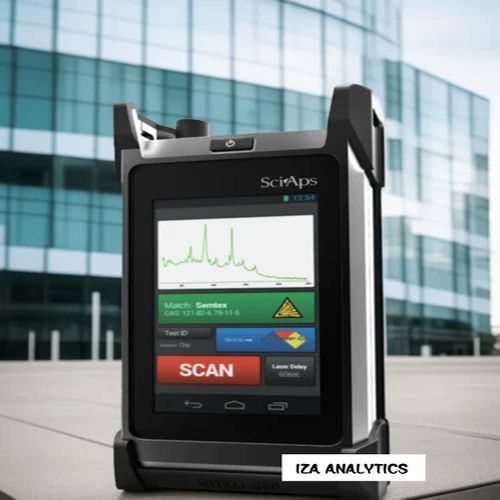

It’s the product requested by military, law enforcement and first responder users of older-generation Raman analyzers. We asked, “What do you want in your next generation Raman analyzer?” They said a) small and easy to use like a Smartphone, advanced libraries and algorithms for today’s explosives and ever-changing narcotics and cutting agents. Because the Chem-200 is Android-based it offers on board HazmasterG3 “so what does that mean” decision support software (English language only), more flexible accessories and sampling – all at nearly half the price of their existing Raman analyzers

NCS Model. Most accurate determination for Oxygen Analyis in Pure copper/Oxygen free coppe

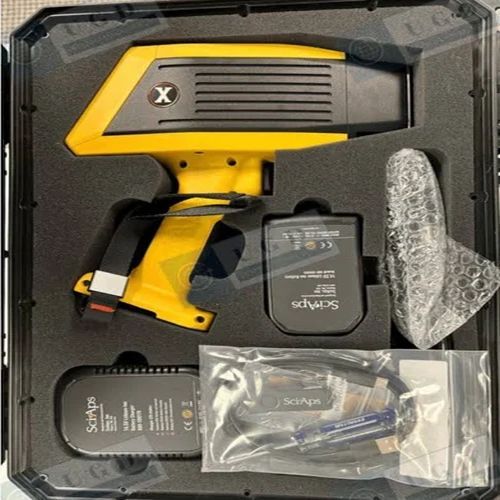

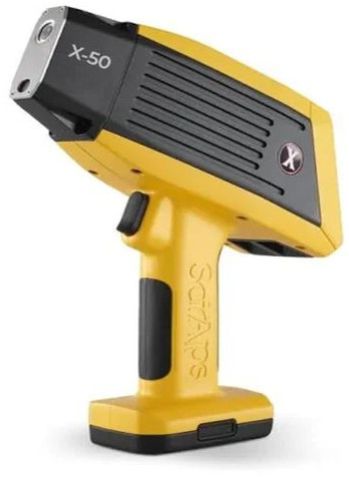

This is the latest State-of-the-art Portable Alloy Analyzer equipped with lates SDD detector for correcring light elements and can be configured for analyising non ferrous metals. It also provided Auto Shutter facility to protect the detecor damage due to pointed objects

Additional Information:

• Item Code: X50
• Production Capacity: unlimited
• Delivery Time: 1-2 months
• Packaging Details: Briefcase

Product Details :-

SparkCCD 7000 spark emission spectrometer uses high-resolution linear CCD to perform full-spectrum scanning. It is widely used to analyze elements of a variety of base metal samples.SparkCCD 7000 is widely used for production process control and finished product lab testing in such fields as metallurgy, casting, machinery and metal processing. It can be used for chemical composition analysis of Ferrum, Aluminum, Copper, Nickel, Cobalt, Magnesium, Titanium, Zinc, Lead, Stannum, Silver and other metals and alloys. Instrument Characteristics 1. Multiple CCDs for full-spectrum scanning of spectral lines within available ranges; 2. Full-digital solid-state light source with excitation energy and continuously adjustable frequency, suitable for various materials; 3. Wide application fields, not limited by channels and matrixes of conventional instruments; 4. Single plate lens holder, greatly reducing contamination to light chamber during wiping; 5. USB or NET-based acquisition for better adaptability. 6. New isolation valve for stable and reliable operation to prevent oil in the vacuum pump from being drawn back to the light chamber. 7. Copper spark stand base with better heat radiation and durability. 8. Argon gas consumption low, only is 1/2-1/3 of inflatable type flush CCD spectrometer.

Vacuum optical system???

• Paschen-Runge mounting
• Not limited by testing channels
• 3648 single-chip CCD pixels
• Single pixel size is only 8μm

Product Details :-

The PORTABLE XRF/ALLOY ANALYSER  is designed for on-site analysis in the wild, featuring small, light, precise, rapid, safe, convenient water proof and long standby time.

Features :- SCRAP SORTING AND GRADE ANALYSIS

• Small power integral End-window miniature X-ray tube, large area beryllium-window silicon drift detector (SDD) (minimum resolution <139eV) and miniature Multi-Channel Digital Signal Processor, has significantly saved test time, improved the Detection Accuracy and reduced the errors, which enables the handheld analyzers to perform as Desktop Analyzers.
• Small in size and easy to carry
• Direct testing, Rapid & Non Destructive Detection. It can directly analyze on the surface of the analytes, without the need of preparing samples and huge size of the analytes. Only 1-2 seconds are necessary to perform rapid hand-held analysis. Even for fine bench-top measurement, the result can be given in just 10 seconds with accuracy close to laboratory measurements. No destruction to samples
• Detection of Light elements
• Built-in HD camera, supports more accurate positioning, achieving a precise testing to tiny particles like pin.
• Built-in Intensify Calibration Method
• Equipped with Hazardous elements analysis software. Combining FP with EC software, it is Easy for Operation and Acquiring wider application fields.
• Built in system, HD touch screen (resolution 640??480), digital multi-channel technology and SPI Data Transmission, Accelerates Data Transmission and improves the counting ability.
• Multiple Safety Protection are designed: 1) Automatically X-rays will be shut off in 2 seconds when there is no sample in place. 2) Radiation level is much lower than the international safety requirements. 3) Thicker protective wall.
• Two Lithium batteries (7800 mAH) are provided with maximum capacity can support 8-hour continuous operation. Wide-voltage AC charger and car charger are provided to ensure the test anytime and anywhere.
• Waterproof and Dust proof function provide the ability of working under high temperature and high humidity. Its body is made with high strength military material, which is moisture proof, anti-shock and pressure resistant.
• Simultaneously it can detect the elements such as Ti, V, Cr, Mn, FE, Co, Ni, Cu, Zn, Se, Cd, Sb, Hg, and Pb. And it can detect more elements according to the customers??? requirements.

Product Details :-

SciAps have emerged as a well-known firm that is involved in providing an extensive range of Hand Held XRF Spectrometer.

Features:

• Longer service life

• Advanced technology used

• Low maintenance

• Excellent in performance

• Compact design

• Longer working life

When it comes to positive materials identification (PMI) of metal alloys, Watson is breaking all the records.

• Watson is the lowest cost, portable XRF analyzer on the market.
• Watson’s patented X-ray technology ensures fast, reliable alloy ID, including our quick, new aluminium alloy ID.
• No downtime, anytime with first ever field exchangeable M1 X-ray source priced at only $299. Works just like an Inkjet.
• Watson’s rapidly growing software library includes 459 metal alloys across 23 of the most common elements.
• In steel or aluminium alloy mode, Watson manages your data the way you want to with the latest smart-phone, Android OS, offering state of the art based monitoring, reporting and tracking of your data and its users.
• Watson and the M1 cartridge are designed, built and supported right here in the USA.
• Wireless and Internet connectivity means effortless data collection for office reporting and analysis.

Key Features :-

Best speed & precision for all alloys – high temps, stainless, red metals, aluminums. • Measures key alloying light elements Mg (> 0.7% in Al base), Al, Si, S and P in 2-3 second beam 2 tests – 5-seconds total test time! • Measures 0.4% Mg in 6063, 356, 3004 in 5 sec. beam 2, 7 seconds total test. • If you want the premium XRF in terms of speed and precision on all alloys, • And you want the fastest XRF available for aluminum alloys choose the X-300.

Portable Harness tester for leeb values with rebound velocity useful for immovable objects

IZA Microhardness Tester is the most reliable hardnnes tester for fasteners analysis in Manual and automatica configurations
