- View Mobile Number
90 Lac / Piece
| Business Type | Supplier, Trader, Distributor |
| Mobility | Fixed |
| Country of Origin | India |
| Condition | New |
| Click to view more | |
Product Details
Power Source
Electric
Automation Grade
Automatic
Application
Industrial Use, Laboratory Use
Model Name/Number
WDX
Sensitivity
superior accuracy
Usage/ Application
Laboratory use
X- Ray Tube
400w Thin Be End Window X-ray Tube Made By Varian
Analysis Accuracy
N-1 (24 Hours, Percentage Content) Less Than 0.05%.
Temperature Control Precision In Constant Temperature Chamber
Setting value +/-0.1 degree C.
High Voltage Supply
400w (50kv8ma)
Gas Flow System
High-accuracy Gas Density Stabilizer with Pressure Stability Up to +/-0.003 Kpa.
Singe Sample Measurement Time
Less Than 3-5 Minutes;
Product Details :

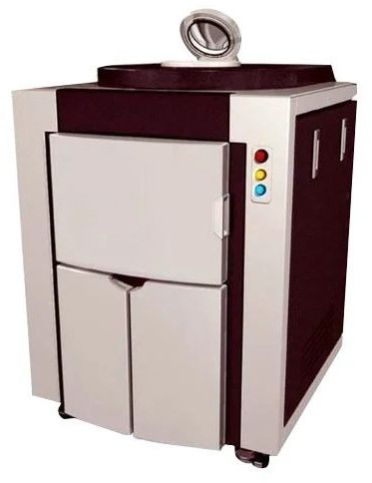

Introduction WDX Spectrometer is a powerful tool that has built in 9 fixed proportional Counter Detectors for the analysis of the elements you choose, with an amazing accuracy and 1 Si Pin Detector to test all other elements. With our simple software and technical capabilities, where most testing takes very long, our process is very simple because it incorporates both XRF methods in one. With a new multi channel digital processor, it has greatly improved the measurement accuracy and stability.
Technical Specifications
- Na, Mg, Al, Si, S, Cl, K, Ca, Fe, P or Ti (Fixed), S - U (EDXRF)
- Precision: 0.05% (24 Hours)/li>
- 400 W High Voltage Power
- Tube: 400 W Be end window X-ray Tube
- Gas Flow Proportional Detector + Sealed Proportional Detector
- Independent Vacuum Pumping Structure
- Multi-Channel MCA real-time detection system
- 10 paths of 1024-channel independent pulse height analyzer
What do you get?
- WDX-400 Wavelength Dispersive X-ray Fluorescent Spectrometer
- Necessary Wiring
- Computer + 20" Monitor - FREE
- Silver, Copper Standard Samples
- Proprietary Software - FREE
- 1 Year Limited Warranty
